Trade Professional Peripheral Water Pump with Auto Control Switch – 0.75kW (1HP)

Description

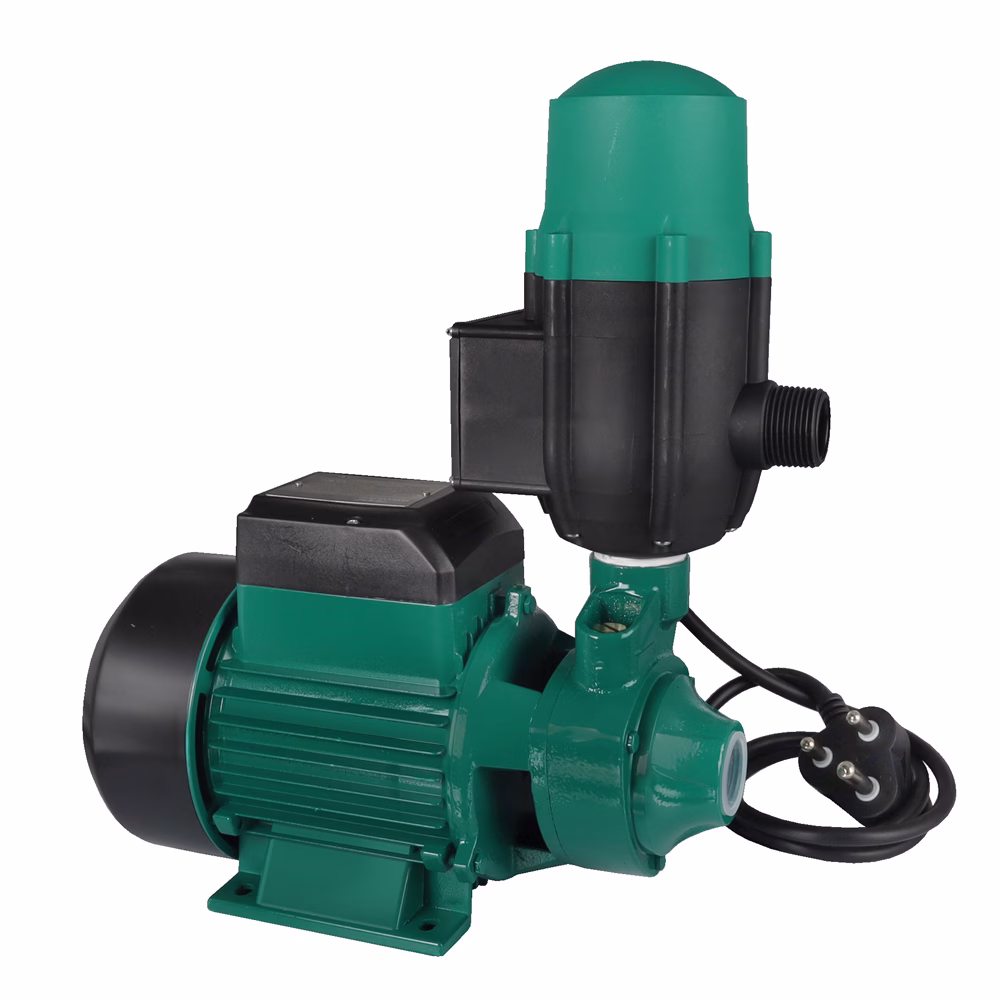

The Trade Professional Peripheral Water Pump with Auto Control Switch – 0.75kW (1HP) is a compact yet robust water management solution for a wide range of domestic and light industrial applications. Featuring a powerful 0.75kW motor and capable of pumping up to 50L per minute, this unit ensures reliable performance for irrigation, water pressure boosting, and efficient clean water transfer. Designed to deliver a maximum head height of 60 metres, it offers excellent vertical delivery for multi-level or elevated installations. The included automatic control switch starts and stops the pump based on water demand, eliminating the need for manual operation. Built for lasting durability, the pump incorporates copper windings, a cast iron body, and a brass impeller—materials chosen for their strength and corrosion resistance. It is ideal for use with water tanks, garden systems, or domestic water lines, and provides both power and ease of use. With a two-year warranty, this pump is a reliable long-term investment for users needing dependable water movement.

Features – Control Switch
1,3m Power Cable with plug

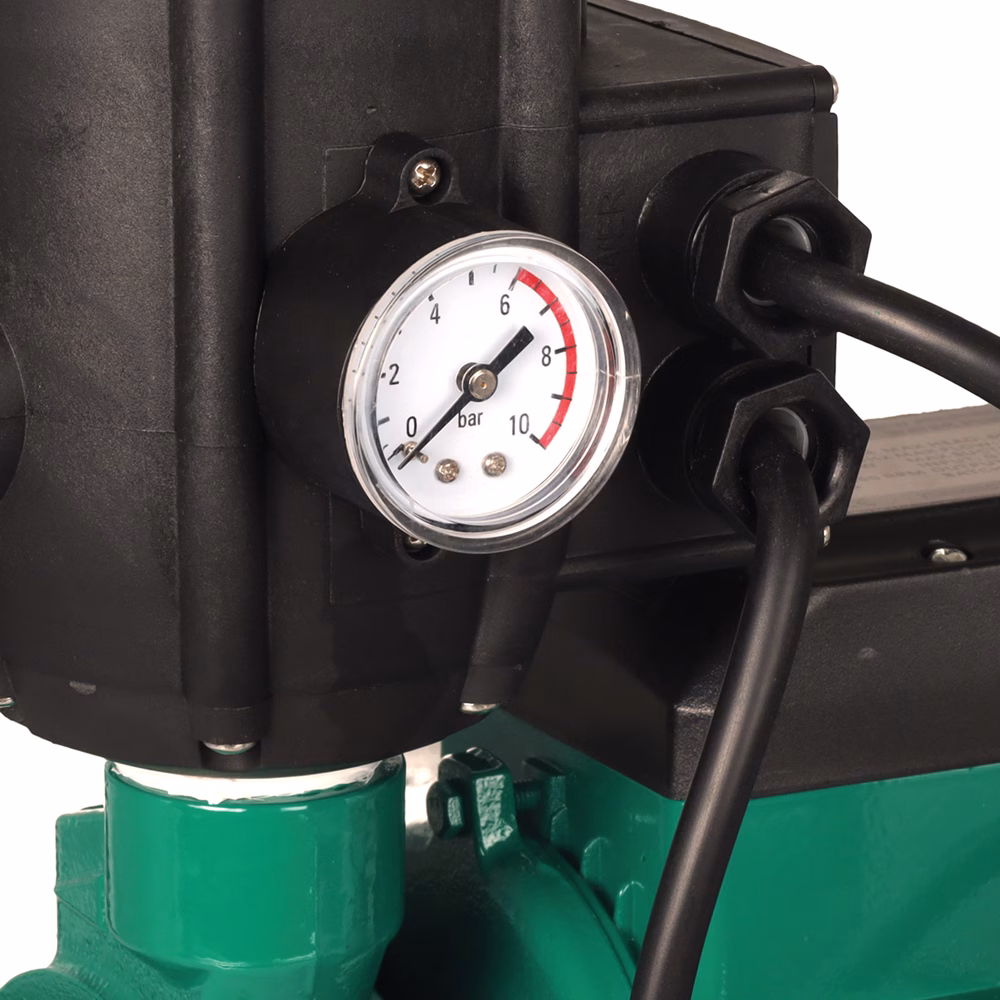

Supplied with gauge
2 Year Warranty
Domestic to Light Industrial Use

Features- Pump
Copper Windings
Cast Iron Pump Body
Brass Impeller
Non-Self Priming
0.4m Cable
2 Year Warranty
Domestic to Light Industrial Use
Specifications – Control Switch

Max Current:10Amps
Max Working Pressure:10 Bar
Starting Pressure: 1.5-3.0 Bar
Max Working Temperature:60ºC
Protection Rating:IP65
Specifications-Pump

Input Voltage:220V / 50HZ
Power:0.75kW / 1.0HP
Max Flow:50L/min
Max Head:60M
Max Suction:8M
Inlet/Outlet:G1″

• Equipped with a 0.75kW (1.0HP) motor for reliable water transfer power: The pump offers robust performance with its efficient 0.75kW motor, making it suitable for demanding water delivery tasks. It achieves a maximum flow of 50 litres per minute while handling a head height of up to 60 metres. This power rating is ideal for domestic systems and small commercial setups. Maintains consistent water pressure in tanks, taps, and irrigation lines. Delivers dependable energy output without excessive power consumption.

• Automatic control switch ensures effortless and hands-free operation: The integrated switch automatically activates the pump when water flow is required and shuts it off when not in use. This removes the need for manual monitoring and reduces the risk of pump burnout. It responds accurately to pressure changes within the system. Supports energy efficiency while extending pump lifespan. A practical solution for remote or unattended systems.

• Constructed with a cast iron body and brass impeller for long-term use: The heavy-duty cast iron casing ensures structural strength and impact resistance during installation and use. Internally, the brass impeller is resistant to corrosion and abrasion, helping preserve flow efficiency over time. These materials work together to maintain durability in both indoor and outdoor environments. Designed for harsh water conditions and constant exposure. Reduces wear-related maintenance and breakdowns.

• Fitted with copper windings to support thermal efficiency and performance: The motor’s copper winding enhances conductivity, reducing electrical losses and enabling cooler operation. This feature contributes to energy efficiency and overall system longevity. The windings are well insulated to protect against voltage surges or short circuits. Engineered to perform under continuous or heavy-duty cycles. Provides peace of mind in high-usage applications.

• High maximum head height of 60 metres supports tall delivery systems: Capable of pushing water vertically over long distances, the 60-metre head rating is ideal for rooftop tanks, irrigation towers, or buildings with elevated storage. Maintains consistent flow and pressure throughout the pipeline. Eliminates the need for additional booster units in many cases. Helps supply water efficiently across multilevel environments. Tailored for both horizontal and vertical setups.

• Delivers a maximum flow rate of 50L/min for rapid water movement: Whether you’re irrigating a garden, filling a storage tank, or boosting household water pressure, the fast flow rate keeps operations quick and smooth. The consistent delivery helps prevent delays and pressure drops. Suits systems that demand regular or large water volumes. Capable of running multiple endpoints simultaneously. Ensures smooth, high-speed output every time.

• Includes power cables, plug, gauge, and comes with a 2-year warranty: This pump kit is supplied ready to install with a 1.3m cable for the controller and 0.4m for the pump, both pre-fitted with a plug where applicable. A pressure gauge is included for real-time monitoring. The entire unit is backed by a 2-year warranty, reinforcing product reliability. Supports confidence in daily or long-term use. Reduces the need for immediate accessory purchases.

The Trade Professional Peripheral Water Pump with Auto Control Switch – 0.75kW (1HP) is built to handle a variety of residential and light commercial water tasks with ease. From irrigation systems to pressure boosting and tank refills, this kit delivers outstanding performance through its powerful motor and intelligent automation. The durable build featuring a cast iron body, brass impeller, and copper windings ensures you get long-term functionality and resistance to harsh conditions. Its high head capacity and strong flow rate offer flexibility across different setups, including vertical and multi-zone installations. The included pressure switch and accessories add value and convenience, while the two-year warranty provides added security. For anyone in need of a reliable, easy-to-use water pump system, this model is a practical and efficient solution.
